FRP/GRP Septic Tank

FRP/GRP septic tank refers to the equipment specially used for treating domestic sewage, which is made of synthetic resin as the matrix and glass fiber reinforced material. FRP septic tank is a composite material product actively promoted by the country. It has the advantages of light weight, high strength, good toughness, corrosion resistance, bright colors, and the finish reaches a mirror effect.

Product Details

FRP/GRP Septic Tank

FRP/GRP septic tank refers to the equipment specially used for treating domestic sewage, which is made of synthetic resin as the matrix and glass fiber reinforced material. FRP septic tank is a composite material product actively promoted by the country. It has the advantages of light weight, high strength, good toughness, corrosion resistance, bright colors, and the finish reaches a mirror effect. It has far exceeded the similar products of ceramics, hard plastics, steel and other materials, and is widely used in chemical, petroleum, construction, textile, aviation, navigation, transportation, electric power, metallurgy, machinery, medical, food, paper, environmental protection and other fields.

Volume range: 0.5-500m3, above 100m3 will be fabricated on site or several septic tanks to work together.

Fabrication process

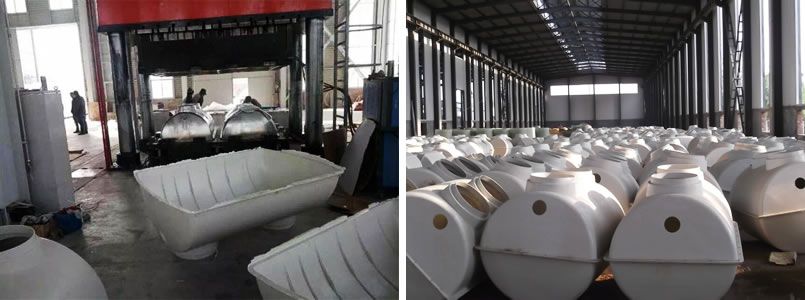

1. 0.5m3-2.5m3 adopt molded process

FRP/GRP Septic Tank

No. Volume (m3) Dimension (mm)
1 0.5 796*1298
2 0.8 910*1620
3 1.0 1015*1735
4 1.5 1160*1690
5 2.0 1266*1966
6 2.5 1266*2266

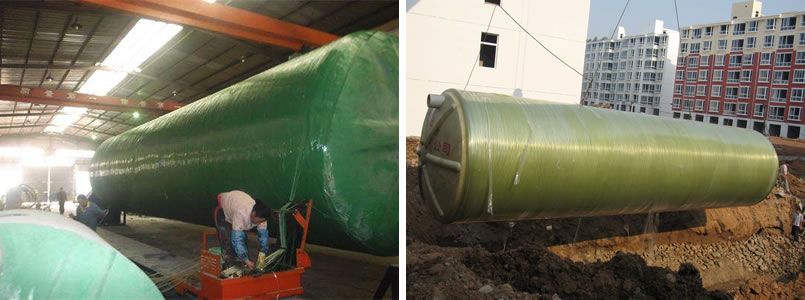

2. Above 2.5m3 adopt filament winding process

FRP/GRP Septic Tank


Work Principle

Septic tank is primary treatment structures which remove the suspended matter in domestic sewage by adopting sediment and anaerobic fermentation principle, domestic sewage contain plenty of feces, Paper Scrap, parasite etc impurity, the suspended solid concentration is 100-350mg, organism concentration BOD5 is between 100 to 400mm, the suspended organism BOD is 50 to 200mg among of them. sewage enter into septic tank will remove 50% to 60%suspended matter after 12 to 24h sediment , the sediment sludge will anaerobic digestion above 3 month, which will make the organism decompose stable inorganics, corruptible raw sludge translate to ripe sludge , it changed sludge structure, reduce sludge water ratio, clear it and transport out regular. Landfill or reuse it as fertilizer.

FRP Septic Tank Features

Eco-friendly

Rust proof and Leak proof

Durable

Light weight and easy to transport

Easy to install

Excellent performance on reduction of BOD

FRP Septic Tank Application

Homehouse

Townhouse

Aquaculture, Fish Farming Filtration System

Centralized Filtration System

Environmental Water Treatment

Industrial Water Treatment

Architectural name kindergarten (boarders), sanatorium
α=100%
Residential, collective dormitory, hotel, hotel
α=70%
Office building, teaching building, industrial enterprises are living
α=40%
Public canteen, cinemas, theaters, gymnasium and the similar public places
α=10%
Volume(m3) Allows the use of number
2 25-20 36-29 63-50 250-200
4 48-38 69-54 120-95 480-380
6 72-56 103-80 180-140 720-560
9 110-96 157-137 275-240 1100-960
12 142-114 203-163 355-285 1420-1140
16 190-150 271-214 475-375 1900-1500
20 235-186 336-266 588-465 2300-1860
25 292-230 417-329 730-575 2920-2300
30 355-275 507-393 888-680 3550-2750
