FRP glass fiber reinforced rod/core, as a kind of structural strengthening element of non-metallic fiber optic cable, is widely accepted and used by the fiber optic cable industry. It is a non-metallic bearing core with good price and performance generally recognized by the fiber optic cable industry at home and abroad.
FRP glass fiber reinforced rod/core, as a kind of structural strengthening element of non-metallic fiber optic cable, is widely accepted and used by the fiber optic cable industry. It is a non-metallic bearing core with good price and performance generally recognized by the fiber optic cable industry at home and abroad. To produce qualified FRP, the key lies in the reasonable selection of reinforcement materials (glass fiber), base materials (resin) and curing process.
Length(km)

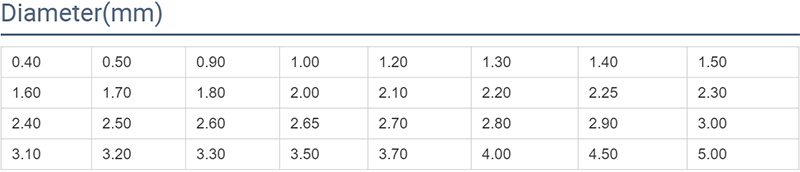

Diameter (0.40~3.00), standard delivery length ≥25km
Diameter (3.10~5.00), standard delivery length ≤18km

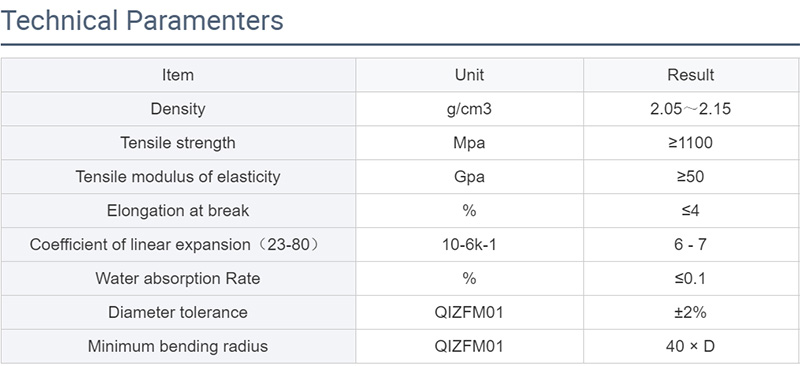

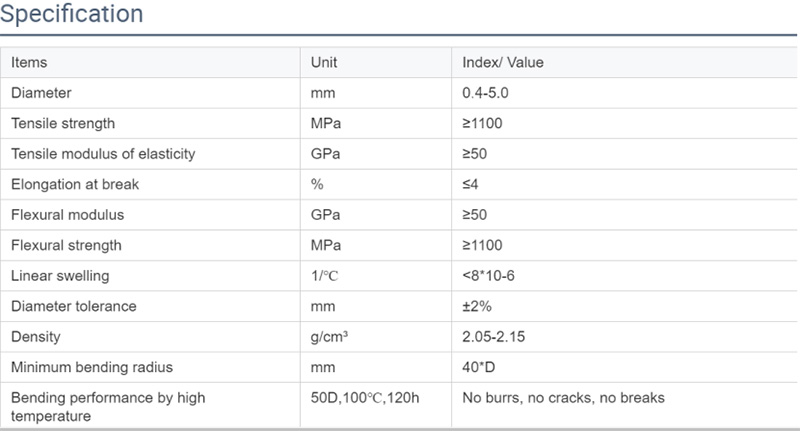

Technical Characteristics:
1. It has the characteristics of light weight and high strength.
2. It has good corrosion resistance and impact resistance. This optical cable is rust proof, tooth biting proof and ant proof.
3. The surface is smooth and the size is more stable.
4. The chemical reaction between metal and other optical cable materials will not affect the optical fiber transmission index.
5. It is not sensitive to electric shock current, and is suitable for multi lightning, multi rain and other climate environment areas; the fiber optic cable with FRP reinforcement core can be installed close to the power line and power supply device, and will not be interfered by the induced current generated by the power line or power supply device.
Advantages of FRP glass fiber reinforced rode/core:
1. Wide range of use of all dielectrics
2. Low elongation/high modulus
3. Corrosion resistance, good compatibility with other materials of optical cable, long life
4. The specific gravity is small, about a quarter of the specific gravity of the steel wire, and the same size can provide a large length of the coil
5. Good surface finish, stable size, easy to process and lay
6. It will not affect the transmission performance of the optical cable due to the harmful gas generated by metal corrosion, which causes hydrogen loss
7. Not sensitive to electric shock and free from electromagnetic interference
8. Has a better strength/quality ratio
Why choose us?
1. Product advantages
(1) Quality internationalization
IOS9000 quality assurance system operates effectively and continuously improves
The technical indicators of the product reach or exceed the international advanced level
(2) Product serialization
Product serialization, complete varieties and specifications
"Products with special requirements such as high modulus, coating, water blocking, special-shaped, ultra-long, etc., are exclusively produced in China."
(3) Scale production capacity
The annual production capacity of non-metallic fiber optic cable reinforcement is 3 million KM
"The world's largest non-metallic fiber optic cable reinforcement production capacity”
2. Technical advantages
(1) Perfect innovation system
Establish innovative systems and mechanisms
R&D team led by senior FRP experts
Cooperate with scientific research institutes in production, learning, and research
Long-term focus on the research and development of new composite materials and non-metallic cable reinforcement
(2) Possess core technology
Possessing proprietary technologies for the design and manufacturing of formulas, preparation processes, molds, and production equipment, has obtained more than 10 patents for authorized products and preparation processes, and participated in the preparation of national industry standards and military standards
(3) Advanced equipment and tooling
Adopt the most advanced non-metallic fiber optic cable reinforcement preparation technology in the world
Independent research and development, design and manufacture of key production equipment and molds
A domestic first-class non-metallic optical cable reinforcement laboratory has been established, with advanced testing equipment and complete testing items
3. Brand advantage
(1) Brand concept
Quality wins the market, integrity creates brand
(2) Market recognition
China's market share has remained above 70% for a long time
Products are exported to the United States, Japan, Australia, Mexico, Europe, Southeast Asia, the Middle East and other international markets
(3) Good reputation
Customer satisfaction has been maintained above 93 points for a long time
Awarded the honor of best supplier by domestic and foreign customers many times
