FRP/GRP Vertical Tank

Corrosion-resist, inner liner resin-rich layer, suitable resin be selected depends on different mediums, resin content is 90%;Smooth inner surface, the roughness coefficient is 0.0084, easy to clean.

Product Details

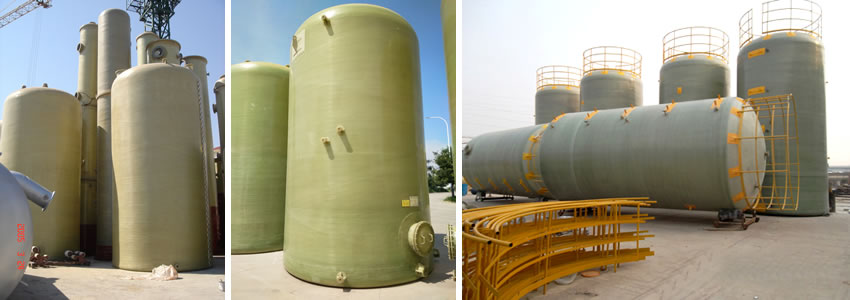

FRP/GRP Vertical Tank

Our Company is a special fabricator that manufactures FRP vessels,chemical tower equipment with rich practical experience.The maxi diameter of the FRP vessel is 50000mm and the volume is 100000m.

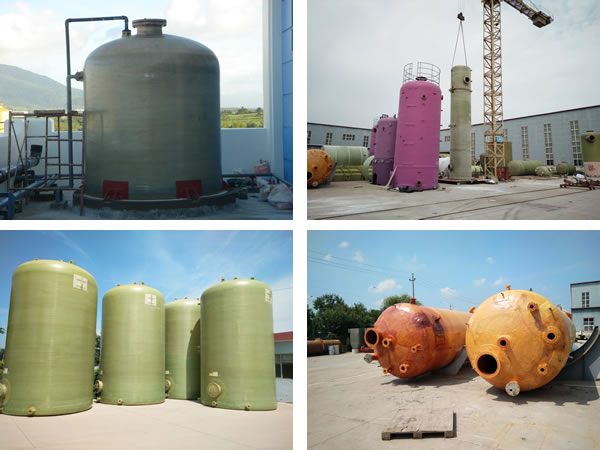

FRP/GRP Vertical Tank

The characteristics as below:

(1) Light weight: the density of FRP is 1.5-1.9g/cm3 1/4 of steel's, but higher strength.

(2) Corrosion resistant: select different resins as per the variety of the media, such as acid, alkaline, salt, oil and solvent.

FRP can be used in every chemical corrosion resistance area; it can replace the stainless steel, nonferrous metal etc, and decline the cost.

(3) Smooth inner surface: easy to clean, the roughness coefficient is n=0.0084, has good sanitary property, can resist the corrosion of animalcule. If choose the food grade resin, the FRP products can meet the requirement of sanitation without toxicity and without taste.

(4) Good property against the low temperature: FRP can be used in minus 80C. suitable for the cold area.

(5) The thermal expansion factor is 2x 10-5/℃, the thermal conductivity is 0.2kcal(m2-h."C ), has good thermal insulation property.

(6) Easy to shape, convenience to maintenance: especially easy to make the complicated equipment, the large-scale vessel can be winding at job-site.

(7) Can match the accessories, such as level indicator, FRP handrail, ladder, platform etc. as per the requirement of user.

The advantages of FRP have been applied in the products from our Company, and the application field is widely, such as chlorine-alkaline poly silicon environmental protection deodorization, foodstuff and brewery, seawater desalination, pasteurization dioxide titanium, chemical fiber, metallurgy waste gas treatment,etc.

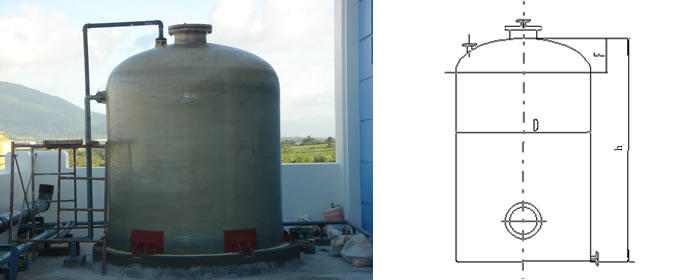

1.1 Vertical tank with flat bottom

FRP Vertical Tank

Vertical Tank with Flat Bottom
volume(m³)\
height(mm)\
diameter(mm)
1000 1200 1400 1600 1800 2000 2200 2600 3000 4000
1 1370
2 2650 1890 1440
3 2720 2080
4 2660 2730 2140
5 3380 2640
6 3140
7 3640
8 4140 3320
9 4630 3700
10 5140 4090 3370
11 5640 4490 3690
12 4880 4010 3360
15 6060 4960 4150
18 7240 5920 4940
20 8030 6550 5460 4000
25 8140 6780 4950 3840
30 8100 5890 4550
35 6880 5260
40 7770 5970
50 9650 7390 4340
60 8790 5140
70 10210 5940
80 11630 6740
90 7540
100 8340
110 9140
120 9940
130 10740
140 11540
150 12340
The other specifications can be designed per the requirement

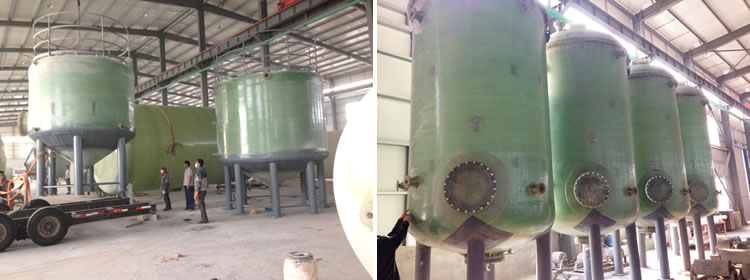

FRP/GRP Vertical Tank

1.2 Vertical tank with round bottom

FRP/GRP Vertical Tank

Vertical Tank with Round Bottom
volume(m³)\
height(mm)\
diameter(mm)
1000 Number
of
seats
1200 Number
of
seats
1400 Number
of
seats
1600 Number
of
seats
1800 Number
of
seats
2000 Number
of
seats
2200 Number
of
seats
2600 Number
of
seats
3000 Number
of
seats
1 1460 3
2 2370 3 1990 3 1550 3
3 4010 3 2870 4 2200 4
4 3760 4 2850 4 2280 4
5 3500 4 2770 4
6 3270 4
7 3770 4
8 4270 4 3460 4
9 4760 4 3860 4
10 5260 4 4250 4 3540 4
11 5760 4 4640 4 3850 4
12 6260 4 5040 4 4170 4 3540 4
15 6120 4 5130 4 4330 4
18 7390 4 6080 4 5120 4
20 8180 4 6720 4 5650 4 4220 4
25 8310 4 6960 4 5160 4 4100 4
30 8280 4 6100 4 4800 4
35 7050 4 5510 4
40 7990 4 6220 4
50 9870 4 7630 4
60 9050 4
70 10460 5
80 11880 5
The other specifications can be designed per the requirement
